Abstract base class for bar chart items. More...

#include <qwt_plot_abstract_barchart.h>

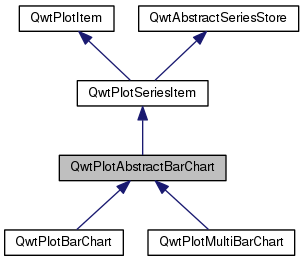

Inheritance diagram for QwtPlotAbstractBarChart:

Public Types
enum	LayoutPolicy { AutoAdjustSamples, ScaleSamplesToAxes, ScaleSampleToCanvas, FixedSampleSize }
	Mode how to calculate the bar width. More...

Public Types inherited from QwtPlotItem
enum	RttiValues { Rtti_PlotItem = 0, Rtti_PlotGrid, Rtti_PlotScale, Rtti_PlotLegend, Rtti_PlotMarker, Rtti_PlotCurve, Rtti_PlotSpectroCurve, Rtti_PlotIntervalCurve, Rtti_PlotHistogram, Rtti_PlotSpectrogram, Rtti_PlotSVG, Rtti_PlotTradingCurve, Rtti_PlotBarChart, Rtti_PlotMultiBarChart, Rtti_PlotShape, Rtti_PlotTextLabel, Rtti_PlotZone, Rtti_PlotUserItem = 1000 }
	Runtime type information. More...

enum	ItemAttribute { Legend = 0x01, AutoScale = 0x02, Margins = 0x04 }
	Plot Item Attributes. More...

enum	ItemInterest { ScaleInterest = 0x01, LegendInterest = 0x02 }
	Plot Item Interests. More...

enum	RenderHint { RenderAntialiased = 0x1 }
	Render hints. More...

typedef QFlags< ItemAttribute >	ItemAttributes
	Plot Item Attributes.

typedef QFlags< ItemInterest >	ItemInterests
	Plot Item Interests.

typedef QFlags< RenderHint >	RenderHints
	Render hints.

Public Member Functions
	QwtPlotAbstractBarChart (const QwtText &title)

virtual	~QwtPlotAbstractBarChart ()
	Destructor.

void	setLayoutPolicy (LayoutPolicy)

LayoutPolicy	layoutPolicy () const

void	setLayoutHint (double)

double	layoutHint () const

void	setSpacing (int)
	Set the spacing. More...

int	spacing () const

void	setMargin (int)
	Set the margin. More...

int	margin () const

void	setBaseline (double)
	Set the baseline. More...

double	baseline () const

virtual void	getCanvasMarginHint (const QwtScaleMap &xMap, const QwtScaleMap &yMap, const QRectF &canvasRect, double &left, double &top, double &right, double &bottom) const
	Calculate a hint for the canvas margin. More...

Public Member Functions inherited from QwtPlotSeriesItem
	QwtPlotSeriesItem (const QString &title=QString::null)

	QwtPlotSeriesItem (const QwtText &title)

virtual	~QwtPlotSeriesItem ()
	Destructor.

void	setOrientation (Qt::Orientation)

Qt::Orientation	orientation () const

virtual void	draw (QPainter *p, const QwtScaleMap &xMap, const QwtScaleMap &yMap, const QRectF &) const
	Draw the complete series. More...

virtual void	drawSeries (QPainter *painter, const QwtScaleMap &xMap, const QwtScaleMap &yMap, const QRectF &canvasRect, int from, int to) const =0

virtual QRectF	boundingRect () const

virtual void	updateScaleDiv (const QwtScaleDiv &, const QwtScaleDiv &)
	Update the item to changes of the axes scale division. More...

Public Member Functions inherited from QwtPlotItem
	QwtPlotItem (const QwtText &title=QwtText())

virtual	~QwtPlotItem ()
	Destroy the QwtPlotItem.

void	attach (QwtPlot *plot)
	Attach the item to a plot. More...

void	detach ()
	This method detaches a QwtPlotItem from any QwtPlot it has been associated with. More...

QwtPlot *	plot () const
	Return attached plot.

void	setTitle (const QString &title)

void	setTitle (const QwtText &title)

const QwtText &	title () const

virtual int	rtti () const

void	setItemAttribute (ItemAttribute, bool on=true)

bool	testItemAttribute (ItemAttribute) const

void	setItemInterest (ItemInterest, bool on=true)

bool	testItemInterest (ItemInterest) const

void	setRenderHint (RenderHint, bool on=true)

bool	testRenderHint (RenderHint) const

void	setRenderThreadCount (uint numThreads)

uint	renderThreadCount () const

void	setLegendIconSize (const QSize &)

QSize	legendIconSize () const

double	z () const

void	setZ (double z)
	Set the z value. More...

void	show ()
	Show the item.

void	hide ()
	Hide the item.

virtual void	setVisible (bool)

bool	isVisible () const

void	setAxes (int xAxis, int yAxis)

void	setXAxis (int axis)

int	xAxis () const
	Return xAxis.

void	setYAxis (int axis)

int	yAxis () const
	Return yAxis.

virtual void	itemChanged ()

virtual void	legendChanged ()

virtual void	updateLegend (const QwtPlotItem *, const QList< QwtLegendData > &)
	Update the item to changes of the legend info. More...

QRectF	scaleRect (const QwtScaleMap &, const QwtScaleMap &) const
	Calculate the bounding scale rectangle of 2 maps. More...

QRectF	paintRect (const QwtScaleMap &, const QwtScaleMap &) const
	Calculate the bounding paint rectangle of 2 maps. More...

virtual QList< QwtLegendData >	legendData () const
	Return all information, that is needed to represent the item on the legend. More...

virtual QwtGraphic	legendIcon (int index, const QSizeF &) const

Protected Member Functions
double	sampleWidth (const QwtScaleMap &map, double canvasSize, double dataSize, double value) const

Protected Member Functions inherited from QwtPlotSeriesItem
virtual void	dataChanged ()
	dataChanged() indicates, that the series has been changed.

Protected Member Functions inherited from QwtPlotItem
QwtGraphic	defaultIcon (const QBrush &, const QSizeF &) const
	Return a default icon from a brush. More...

Protected Member Functions inherited from QwtAbstractSeriesStore
virtual	~QwtAbstractSeriesStore ()
	Destructor.

virtual void	setRectOfInterest (const QRectF &)=0

virtual QRectF	dataRect () const =0

virtual size_t	dataSize () const =0

Detailed Description

Abstract base class for bar chart items.

In opposite to almost all other plot items bar charts can't be displayed inside of their bounding rectangle and need a special API how to calculate the width of the bars and how they affect the layout of the attached plot.

Member Enumeration Documentation

enum QwtPlotAbstractBarChart::LayoutPolicy

Mode how to calculate the bar width.

setLayoutPolicy(), setLayoutHint(), barWidthHint()

Enumerator
AutoAdjustSamples	The sample width is calculated by dividing the bounding rectangle by the number of samples. The layoutHint() is used as a minimum width in paint device coordinates. See Also boundingRectangle()
ScaleSamplesToAxes	layoutHint() defines an interval in axis coordinates
ScaleSampleToCanvas	The bar width is calculated by multiplying layoutHint() with the height or width of the canvas. See Also boundingRectangle()
FixedSampleSize	layoutHint() defines a fixed width in paint device coordinates.

Constructor & Destructor Documentation

QwtPlotAbstractBarChart::QwtPlotAbstractBarChart ( const QwtText & title )

explicit

Constructor

Parameters

title Title of the chart

Member Function Documentation

double QwtPlotAbstractBarChart::baseline ( ) const

Returns: Value for the origin of the bar chart

See Also: setBaseline(), QwtPlotSeriesItem::orientation()

void QwtPlotAbstractBarChart::getCanvasMarginHint	(	const QwtScaleMap &	xMap,
		const QwtScaleMap &	yMap,
		const QRectF &	canvasRect,
		double &	left,
		double &	top,
		double &	right,
		double &	bottom
	)		const

virtual

Calculate a hint for the canvas margin.

Bar charts need to reserve some space for displaying the bars for the first and the last sample. The hint is calculated from the layoutHint() depending on the layoutPolicy().

The margins are in target device coordinates ( pixels on screen )

Parameters

xMap	Maps x-values into pixel coordinates.
yMap	Maps y-values into pixel coordinates.
canvasRect	Contents rectangle of the canvas in painter coordinates
left	Returns the left margin
top	Returns the top margin
right	Returns the right margin
bottom	Returns the bottom margin

Returns: Margin

See Also: layoutPolicy(), layoutHint(), QwtPlotItem::Margins QwtPlot::getCanvasMarginsHint(), QwtPlot::updateCanvasMargins()

Reimplemented from QwtPlotItem.

double QwtPlotAbstractBarChart::layoutHint ( ) const

The combination of layoutPolicy() and layoutHint() define how the width of the bars is calculated

Returns: Layout policy of the chart item

See Also: LayoutPolicy, setLayoutHint(), layoutPolicy()

QwtPlotAbstractBarChart::LayoutPolicy QwtPlotAbstractBarChart::layoutPolicy ( ) const

The combination of layoutPolicy() and layoutHint() define how the width of the bars is calculated

Returns: Layout policy of the chart item

See Also: setLayoutPolicy(), layoutHint()

int QwtPlotAbstractBarChart::margin ( ) const

Returns: Margin between the outmost bars and the contentsRect() of the canvas.

See Also: setMargin(), spacing()

double QwtPlotAbstractBarChart::sampleWidth	(	const QwtScaleMap &	map,
		double	canvasSize,
		double	boundingSize,
		double	value
	)		const

protected

Calculate the width for a sample in paint device coordinates

Parameters

map	Scale map for the corresponding scale
canvasSize	Size of the canvas in paint device coordinates
boundingSize	Bounding size of the chart in plot coordinates ( used in AutoAdjustSamples mode )
value	Value of the sample

Returns: Sample width

See Also: layoutPolicy(), layoutHint()

void QwtPlotAbstractBarChart::setBaseline ( double value )

Set the baseline.

The baseline is the origin for the chart. Each bar is painted from the baseline in the direction of the sample value. In case of a horizontal orientation() the baseline is interpreted as x - otherwise as y - value.

The default value for the baseline is 0.

Parameters

value Value for the baseline
