QwtAbstractSeriesStore Class Reference

Bridge between QwtSeriesStore and QwtPlotSeriesItem. More...

#include <qwt_series_store.h>

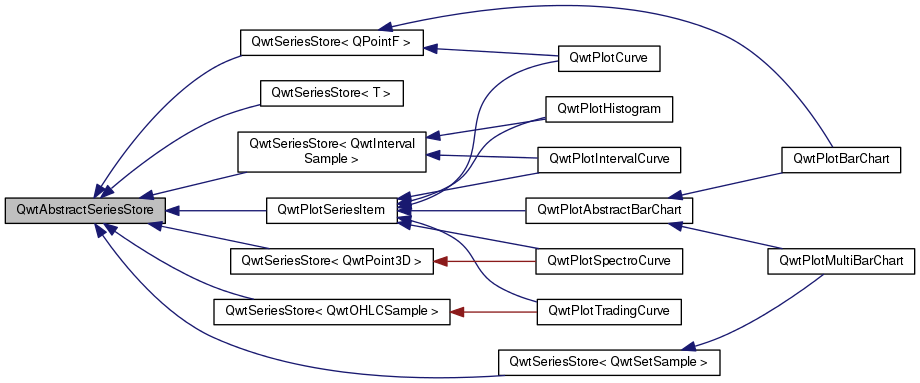

Inheritance diagram for QwtAbstractSeriesStore:

Protected Member Functions
virtual	~QwtAbstractSeriesStore ()
	Destructor.
virtual void	dataChanged ()=0
	dataChanged() indicates, that the series has been changed.
virtual void	setRectOfInterest (const QRectF &)=0
virtual QRectF	dataRect () const =0
virtual size_t	dataSize () const =0

Detailed Description

Bridge between QwtSeriesStore and QwtPlotSeriesItem.

QwtAbstractSeriesStore is an abstract interface only to make it possible to isolate the template based methods ( QwtSeriesStore ) from the regular methods ( QwtPlotSeriesItem ) to make it possible to derive from QwtPlotSeriesItem without any hassle with templates.

Member Function Documentation

virtual QRectF QwtAbstractSeriesStore::dataRect ( ) const

protectedpure virtual

Returns

Bounding rectangle of the stored series

Implemented in QwtSeriesStore< T >, QwtSeriesStore< QwtIntervalSample >, QwtSeriesStore< QwtOHLCSample >, QwtSeriesStore< QPointF >, QwtSeriesStore< QwtSetSample >, and QwtSeriesStore< QwtPoint3D >.

virtual size_t QwtAbstractSeriesStore::dataSize ( ) const

protectedpure virtual

Returns

Number of samples

Implemented in QwtSeriesStore< T >, QwtSeriesStore< QwtIntervalSample >, QwtSeriesStore< QwtOHLCSample >, QwtSeriesStore< QPointF >, QwtSeriesStore< QwtSetSample >, and QwtSeriesStore< QwtPoint3D >.

virtual void QwtAbstractSeriesStore::setRectOfInterest ( const QRectF &  )

protectedpure virtual

Set a the "rectangle of interest" for the stored series

See Also

QwtSeriesData<T>::setRectOfInterest()

Implemented in QwtSeriesStore< T >, QwtSeriesStore< QwtIntervalSample >, QwtSeriesStore< QwtOHLCSample >, QwtSeriesStore< QPointF >, QwtSeriesStore< QwtSetSample >, and QwtSeriesStore< QwtPoint3D >.
