QwtPlotIntervalCurve represents a series of samples, where each value is associated with an interval ( $[y1,y2] = f(x)$ ). More...

#include <qwt_plot_intervalcurve.h>

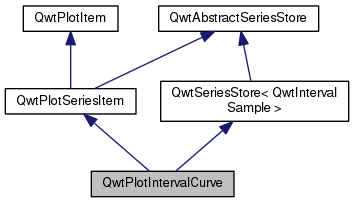

Inheritance diagram for QwtPlotIntervalCurve:

[legend]

Public Types
enum	CurveStyle { NoCurve, Tube, UserCurve = 100 }
	Curve styles. The default setting is QwtPlotIntervalCurve::Tube. More...

enum	PaintAttribute { ClipPolygons = 0x01, ClipSymbol = 0x02 }

typedef QFlags< PaintAttribute >	PaintAttributes
	Paint attributes.

Public Types inherited from QwtPlotItem
enum	RttiValues { Rtti_PlotItem = 0, Rtti_PlotGrid, Rtti_PlotScale, Rtti_PlotLegend, Rtti_PlotMarker, Rtti_PlotCurve, Rtti_PlotSpectroCurve, Rtti_PlotIntervalCurve, Rtti_PlotHistogram, Rtti_PlotSpectrogram, Rtti_PlotSVG, Rtti_PlotTradingCurve, Rtti_PlotBarChart, Rtti_PlotMultiBarChart, Rtti_PlotShape, Rtti_PlotTextLabel, Rtti_PlotZone, Rtti_PlotUserItem = 1000 }
	Runtime type information. More...

enum	ItemAttribute { Legend = 0x01, AutoScale = 0x02, Margins = 0x04 }
	Plot Item Attributes. More...

enum	ItemInterest { ScaleInterest = 0x01, LegendInterest = 0x02 }
	Plot Item Interests. More...

enum	RenderHint { RenderAntialiased = 0x1 }
	Render hints. More...

typedef QFlags< ItemAttribute >	ItemAttributes
	Plot Item Attributes.

typedef QFlags< ItemInterest >	ItemInterests
	Plot Item Interests.

typedef QFlags< RenderHint >	RenderHints
	Render hints.

Public Member Functions
	QwtPlotIntervalCurve (const QString &title=QString::null)

	QwtPlotIntervalCurve (const QwtText &title)

virtual	~QwtPlotIntervalCurve ()
	Destructor.

virtual int	rtti () const

void	setPaintAttribute (PaintAttribute, bool on=true)

bool	testPaintAttribute (PaintAttribute) const

void	setSamples (const QVector< QwtIntervalSample > &)

void	setSamples (QwtSeriesData< QwtIntervalSample > *)

void	setPen (const QColor &, qreal width=0.0, Qt::PenStyle=Qt::SolidLine)

void	setPen (const QPen &)
	Assign a pen. More...

const QPen &	pen () const

void	setBrush (const QBrush &)

const QBrush &	brush () const

void	setStyle (CurveStyle style)

CurveStyle	style () const

void	setSymbol (const QwtIntervalSymbol *)

const QwtIntervalSymbol *	symbol () const

virtual void	drawSeries (QPainter *p, const QwtScaleMap &xMap, const QwtScaleMap &yMap, const QRectF &canvasRect, int from, int to) const

virtual QRectF	boundingRect () const

virtual QwtGraphic	legendIcon (int index, const QSizeF &) const

Public Member Functions inherited from QwtPlotSeriesItem
	QwtPlotSeriesItem (const QString &title=QString::null)

	QwtPlotSeriesItem (const QwtText &title)

virtual	~QwtPlotSeriesItem ()
	Destructor.

void	setOrientation (Qt::Orientation)

Qt::Orientation	orientation () const

virtual void	draw (QPainter *p, const QwtScaleMap &xMap, const QwtScaleMap &yMap, const QRectF &) const
	Draw the complete series. More...

virtual void	updateScaleDiv (const QwtScaleDiv &, const QwtScaleDiv &)
	Update the item to changes of the axes scale division. More...

Public Member Functions inherited from QwtPlotItem
	QwtPlotItem (const QwtText &title=QwtText())

virtual	~QwtPlotItem ()
	Destroy the QwtPlotItem.

void	attach (QwtPlot *plot)
	Attach the item to a plot. More...

void	detach ()
	This method detaches a QwtPlotItem from any QwtPlot it has been associated with. More...

QwtPlot *	plot () const
	Return attached plot.

void	setTitle (const QString &title)

void	setTitle (const QwtText &title)

const QwtText &	title () const

void	setItemAttribute (ItemAttribute, bool on=true)

bool	testItemAttribute (ItemAttribute) const

void	setItemInterest (ItemInterest, bool on=true)

bool	testItemInterest (ItemInterest) const

void	setRenderHint (RenderHint, bool on=true)

bool	testRenderHint (RenderHint) const

void	setRenderThreadCount (uint numThreads)

uint	renderThreadCount () const

void	setLegendIconSize (const QSize &)

QSize	legendIconSize () const

double	z () const

void	setZ (double z)
	Set the z value. More...

void	show ()
	Show the item.

void	hide ()
	Hide the item.

virtual void	setVisible (bool)

bool	isVisible () const

void	setAxes (int xAxis, int yAxis)

void	setXAxis (int axis)

int	xAxis () const
	Return xAxis.

void	setYAxis (int axis)

int	yAxis () const
	Return yAxis.

virtual void	itemChanged ()

virtual void	legendChanged ()

virtual void	getCanvasMarginHint (const QwtScaleMap &xMap, const QwtScaleMap &yMap, const QRectF &canvasSize, double &left, double &top, double &right, double &bottom) const
	Calculate a hint for the canvas margin. More...

virtual void	updateLegend (const QwtPlotItem *, const QList< QwtLegendData > &)
	Update the item to changes of the legend info. More...

QRectF	scaleRect (const QwtScaleMap &, const QwtScaleMap &) const
	Calculate the bounding scale rectangle of 2 maps. More...

QRectF	paintRect (const QwtScaleMap &, const QwtScaleMap &) const
	Calculate the bounding paint rectangle of 2 maps. More...

virtual QList< QwtLegendData >	legendData () const
	Return all information, that is needed to represent the item on the legend. More...

Public Member Functions inherited from QwtSeriesStore< QwtIntervalSample >
	QwtSeriesStore ()
	Constructor The store contains no series.

	~QwtSeriesStore ()
	Destructor.

void	setData (QwtSeriesData< QwtIntervalSample > *series)

QwtSeriesData < QwtIntervalSample > *	data ()

const QwtSeriesData < QwtIntervalSample > *	data () const

QwtIntervalSample	sample (int index) const

virtual size_t	dataSize () const

virtual QRectF	dataRect () const

virtual void	setRectOfInterest (const QRectF &rect)

QwtSeriesData < QwtIntervalSample > *	swapData (QwtSeriesData< QwtIntervalSample > *series)

Protected Member Functions
void	init ()
	Initialize internal members.

virtual void	drawTube (QPainter *, const QwtScaleMap &xMap, const QwtScaleMap &yMap, const QRectF &canvasRect, int from, int to) const

virtual void	drawSymbols (QPainter *, const QwtIntervalSymbol &, const QwtScaleMap &xMap, const QwtScaleMap &yMap, const QRectF &canvasRect, int from, int to) const

Protected Member Functions inherited from QwtPlotSeriesItem
virtual void	dataChanged ()
	dataChanged() indicates, that the series has been changed.

Protected Member Functions inherited from QwtPlotItem
QwtGraphic	defaultIcon (const QBrush &, const QSizeF &) const
	Return a default icon from a brush. More...

Protected Member Functions inherited from QwtAbstractSeriesStore
virtual	~QwtAbstractSeriesStore ()
	Destructor.

Detailed Description

QwtPlotIntervalCurve represents a series of samples, where each value is associated with an interval ( $[y1,y2] = f(x)$ ).

The representation depends on the style() and an optional symbol() that is displayed for each interval. QwtPlotIntervalCurve might be used to display error bars or the area between 2 curves.

Member Enumeration Documentation

enum QwtPlotIntervalCurve::CurveStyle

Curve styles. The default setting is QwtPlotIntervalCurve::Tube.

See Also: setStyle(), style()

Enumerator
NoCurve	Don't draw a curve. Note: This doesn't affect the symbols.
Tube	Build 2 curves from the upper and lower limits of the intervals and draw them with the pen(). The area between the curves is filled with the brush().
UserCurve	Styles >= QwtPlotIntervalCurve::UserCurve are reserved for derived classes that overload drawSeries() with additional application specific curve types.

enum QwtPlotIntervalCurve::PaintAttribute

Attributes to modify the drawing algorithm.

See Also: setPaintAttribute(), testPaintAttribute()

Enumerator
ClipPolygons	Clip polygons before painting them. In situations, where points are far outside the visible area (f.e when zooming deep) this might be a substantial improvement for the painting performance.
ClipSymbol	Check if a symbol is on the plot canvas before painting it.

Constructor & Destructor Documentation

QwtPlotIntervalCurve::QwtPlotIntervalCurve ( const QString & title = QString::null )

explicit

Constructor

Parameters

title Title of the curve

QwtPlotIntervalCurve::QwtPlotIntervalCurve ( const QwtText & title )

explicit

Constructor

Parameters

title Title of the curve

Member Function Documentation

QRectF QwtPlotIntervalCurve::boundingRect ( ) const

virtual

Returns: Bounding rectangle of all samples. For an empty series the rectangle is invalid.

Reimplemented from QwtPlotSeriesItem.

const QBrush & QwtPlotIntervalCurve::brush ( ) const

Returns: Brush used to fill the area in Tube style()

See Also: setBrush(), setStyle(), CurveStyle

void QwtPlotIntervalCurve::drawSeries	(	QPainter *	painter,
		const QwtScaleMap &	xMap,
		const QwtScaleMap &	yMap,
		const QRectF &	canvasRect,
		int	from,
		int	to
	)		const

virtual

Draw a subset of the samples

Parameters

painter	Painter
xMap	Maps x-values into pixel coordinates.
yMap	Maps y-values into pixel coordinates.
canvasRect	Contents rectangle of the canvas
from	Index of the first sample to be painted
to	Index of the last sample to be painted. If to < 0 the series will be painted to its last sample.

See Also: drawTube(), drawSymbols()

Implements QwtPlotSeriesItem.

void QwtPlotIntervalCurve::drawSymbols	(	QPainter *	painter,
		const QwtIntervalSymbol &	symbol,
		const QwtScaleMap &	xMap,
		const QwtScaleMap &	yMap,
		const QRectF &	canvasRect,
		int	from,
		int	to
	)		const

protectedvirtual

Draw symbols for a subset of the samples

Parameters

painter	Painter
symbol	Interval symbol
xMap	x map
yMap	y map
canvasRect	Contents rectangle of the canvas
from	Index of the first sample to be painted
to	Index of the last sample to be painted

See Also: setSymbol(), drawSeries(), drawTube()

void QwtPlotIntervalCurve::drawTube	(	QPainter *	painter,
		const QwtScaleMap &	xMap,
		const QwtScaleMap &	yMap,
		const QRectF &	canvasRect,
		int	from,
		int	to
	)		const

protectedvirtual

Draw a tube

Builds 2 curves from the upper and lower limits of the intervals and draws them with the pen(). The area between the curves is filled with the brush().

Parameters

painter	Painter
xMap	Maps x-values into pixel coordinates.
yMap	Maps y-values into pixel coordinates.
canvasRect	Contents rectangle of the canvas
from	Index of the first sample to be painted
to	Index of the last sample to be painted. If to < 0 the series will be painted to its last sample.

See Also: drawSeries(), drawSymbols()

QwtGraphic QwtPlotIntervalCurve::legendIcon	(	int	index,
		const QSizeF &	size
	)		const

virtual

Returns: Icon for the legend

In case of Tube style() the icon is a plain rectangle filled with the brush(). If a symbol is assigned it is scaled to size.

Parameters

index	Index of the legend entry ( ignored as there is only one )
size	Icon size

See Also: QwtPlotItem::setLegendIconSize(), QwtPlotItem::legendData()

Reimplemented from QwtPlotItem.

const QPen & QwtPlotIntervalCurve::pen ( ) const

Returns: Pen used to draw the lines

See Also: setPen(), brush()

int QwtPlotIntervalCurve::rtti ( ) const

virtual

Returns: QwtPlotItem::Rtti_PlotIntervalCurve

Reimplemented from QwtPlotItem.

void QwtPlotIntervalCurve::setBrush ( const QBrush & brush )

Assign a brush.

The brush is used to fill the area in Tube style().

Parameters

brush Brush

See Also: brush(), pen(), setStyle(), CurveStyle

void QwtPlotIntervalCurve::setPaintAttribute	(	PaintAttribute	attribute,
		bool	on = `true`
	)

Specify an attribute how to draw the curve

Parameters

attribute	Paint attribute
on	On/Off

See Also: testPaintAttribute()

void QwtPlotIntervalCurve::setPen	(	const QColor &	color,
		qreal	width = `0.0`,
		Qt::PenStyle	style = `Qt::SolidLine`
	)

Build and assign a pen

In Qt5 the default pen width is 1.0 ( 0.0 in Qt4 ) what makes it non cosmetic ( see QPen::isCosmetic() ). This method has been introduced to hide this incompatibility.

Parameters
