#include <qwt_abstract_slider.h>

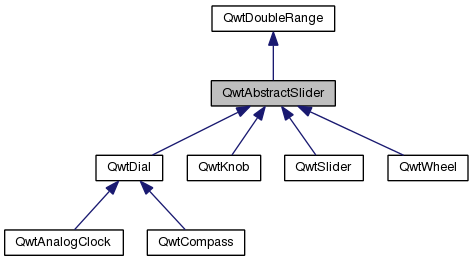

Inheritance diagram for QwtAbstractSlider:

Public Types
enum	ScrollMode { ScrNone, ScrMouse, ScrTimer, ScrDirect, ScrPage }

Public Slots
virtual void	fitValue (double val)
virtual void	incValue (int steps)
virtual void	setReadOnly (bool)
virtual void	setValue (double val)

Signals
void	sliderMoved (double value)
void	sliderPressed ()
void	sliderReleased ()
void	valueChanged (double value)

Public Member Functions
	QwtAbstractSlider (Qt::Orientation, QWidget *parent=NULL)
virtual	~QwtAbstractSlider ()
bool	isReadOnly () const
bool	isValid () const
virtual double	mass () const
Qt::Orientation	orientation () const
virtual void	setMass (double val)
virtual void	setOrientation (Qt::Orientation o)
void	setTracking (bool enable)
void	setUpdateTime (int t)
void	setValid (bool valid)
void	stopMoving ()
Public Member Functions inherited from QwtDoubleRange
	QwtDoubleRange ()
virtual	~QwtDoubleRange ()
virtual void	incPages (int)
double	maxValue () const
double	minValue () const
int	pageSize () const
bool	periodic () const
void	setPeriodic (bool tf)
void	setRange (double vmin, double vmax, double vstep=0.0, int pagesize=1)
void	setStep (double)
double	step () const
double	value () const

Protected Member Functions
virtual void	getScrollMode (const QPoint &p, int &scrollMode, int &direction)=0
virtual double	getValue (const QPoint &p)=0
virtual void	keyPressEvent (QKeyEvent *e)
virtual void	mouseMoveEvent (QMouseEvent *e)
double	mouseOffset () const
virtual void	mousePressEvent (QMouseEvent *e)
virtual void	mouseReleaseEvent (QMouseEvent *e)
int	scrollMode () const
void	setMouseOffset (double)
virtual void	setPosition (const QPoint &)
virtual void	timerEvent (QTimerEvent *e)
virtual void	valueChange ()
virtual void	wheelEvent (QWheelEvent *e)
Protected Member Functions inherited from QwtDoubleRange
double	exactPrevValue () const
double	exactValue () const
double	prevValue () const
virtual void	rangeChange ()
virtual void	stepChange ()

Detailed Description

An abstract base class for slider widgets.

QwtAbstractSlider is a base class for slider widgets. It handles mouse events and updates the slider's value accordingly. Derived classes only have to implement the getValue() and getScrollMode() members, and should react to a valueChange(), which normally requires repainting.

Member Enumeration Documentation

enum QwtAbstractSlider::ScrollMode

Scroll mode

See also:: getScrollMode()

Constructor & Destructor Documentation

QwtAbstractSlider::QwtAbstractSlider	(	Qt::Orientation	orientation,
		QWidget *	parent = `NULL`
	)

explicit

Constructor.

Parameters:

orientation	Orientation
parent	Parent widget

Member Function Documentation

void QwtAbstractSlider::fitValue ( double value )

virtualslot

Set the slider's value to the nearest integer multiple of the step size.

Parameters:

value Value

See also:: setValue(), incValue()

Reimplemented from QwtDoubleRange.

virtual void QwtAbstractSlider::getScrollMode	(	const QPoint &	p,
		int &	scrollMode,
		int &	direction
	)

protectedpure virtual

Determine what to do when the user presses a mouse button.

This function is abstract and has to be implemented by derived classes. It is called on a mousePress event. The derived class can determine what should happen next in dependence of the position where the mouse was pressed by returning scrolling mode and direction. QwtAbstractSlider knows the following modes:

QwtAbstractSlider::ScrNone: Scrolling switched off. Don't change the value.
QwtAbstractSlider::ScrMouse: Change the value while the user keeps the button pressed and moves the mouse.
QwtAbstractSlider::ScrTimer: Automatic scrolling. Increment the value in the specified direction as long as the user keeps the button pressed.
QwtAbstractSlider::ScrPage: Automatic scrolling. Same as ScrTimer, but increment by page size.

Parameters:

p	point where the mouse was pressed

Return values:

scrollMode	The scrolling mode
direction	direction: 1, 0, or -1.

Implemented in QwtDial, QwtSlider, and QwtWheel.

virtual double QwtAbstractSlider::getValue ( const QPoint & p )

protectedpure virtual

Determine the value corresponding to a specified poind.

This is an abstract virtual function which is called when the user presses or releases a mouse button or moves the mouse. It has to be implemented by the derived class.

Parameters:

p point

Implemented in QwtDial, QwtSlider, and QwtWheel.

void QwtAbstractSlider::incValue ( int steps )

virtualslot

Increment the value by a specified number of steps.

Parameters:

steps number of steps

See also:: setValue()

Reimplemented from QwtDoubleRange.

bool QwtAbstractSlider::isReadOnly ( ) const

In read only mode the slider can't be controlled by mouse or keyboard.

Returns:: true if read only

See also:: setReadOnly()

bool QwtAbstractSlider::isValid ( ) const

inline

See also:: QwtDblRange::isValid()

Reimplemented from QwtDoubleRange.

void QwtAbstractSlider::keyPressEvent ( QKeyEvent * e )

protectedvirtual

Handles key events

Key_Down, KeyLeft
Decrement by 1
Key_Up, Key_Right
Increment by 1

Parameters:

e Key event

See also:: isReadOnly()

Reimplemented in QwtDial, and QwtCompass.

double QwtAbstractSlider::mass ( ) const

virtual

Returns:: mass

See also:: setMass()

Reimplemented in QwtWheel.

void QwtAbstractSlider::mouseMoveEvent ( QMouseEvent * e )

protectedvirtual

Mouse Move Event handler

Parameters:

e	Mouse event

void QwtAbstractSlider::mousePressEvent ( QMouseEvent * e )

protectedvirtual

Mouse press event handler

Parameters:

e	Mouse event

void QwtAbstractSlider::mouseReleaseEvent ( QMouseEvent * e )

protectedvirtual

Mouse Release Event handler

Parameters:

e	Mouse event

Qt::Orientation QwtAbstractSlider::orientation ( ) const

Returns:: Orientation

See also:: setOrientation()

void QwtAbstractSlider::setMass ( double val )

virtual

Set the slider's mass for flywheel effect.

If the slider's mass is greater then 0, it will continue to move after the mouse button has been released. Its speed decreases with time at a rate depending on the slider's mass. A large mass means that it will continue to move for a long time.

Derived widgets may overload this function to make it public.

Parameters:

val	New mass in kg

See also:: mass()

Reimplemented in QwtWheel.

void QwtAbstractSlider::setOrientation ( Qt::Orientation o )

virtual

Set the orientation.

Parameters:

o	Orientation. Allowed values are Qt::Horizontal and Qt::Vertical.

Reimplemented in QwtSlider, and QwtWheel.

void QwtAbstractSlider::setPosition ( const QPoint & p )

protectedvirtual

Move the slider to a specified point, adjust the value and emit signals if necessary.

void QwtAbstractSlider::setReadOnly ( bool readOnly )

virtualslot

En/Disable read only mode

In read only mode the slider can't be controlled by mouse or keyboard.

Parameters:

readOnly Enables in case of true

See also:: isReadOnly()

void QwtAbstractSlider::setTracking ( bool enable )

Enables or disables tracking.

If tracking is enabled, the slider emits a valueChanged() signal whenever its value changes (the default behaviour). If tracking is disabled, the value changed() signal will only be emitted if:

the user releases the mouse button and the value has changed or
at the end of automatic scrolling.

Tracking is enabled by default.

Parameters:

enable true (enable) or false (disable) tracking.

void QwtAbstractSlider::setUpdateTime ( int t )

Specify the update interval for automatic scrolling.

Parameters:

t	update interval in milliseconds

See also:: getScrollMode()

void QwtAbstractSlider::setValid ( bool valid )

inline

Parameters:

valid true/false

See also:: QwtDblRange::isValid()

Reimplemented from QwtDoubleRange.

void QwtAbstractSlider::setValue ( double val )

virtualslot

Move the slider to a specified value.

This function can be used to move the slider to a value which is not an integer multiple of the step size.

Parameters:

val new value

See also:: fitValue()

Reimplemented from QwtDoubleRange.

void QwtAbstractSlider::sliderMoved ( double value )

signal

This signal is emitted when the user moves the slider with the mouse.

Parameters:

value new value

void QwtAbstractSlider::sliderPressed ( )

signal

This signal is emitted when the user presses the movable part of the slider (start ScrMouse Mode).

void QwtAbstractSlider::sliderReleased ( )

signal

This signal is emitted when the user releases the movable part of the slider.

void QwtAbstractSlider::timerEvent ( QTimerEvent * e )

protectedvirtual

Qt timer event

Parameters:

e	Timer event

void QwtAbstractSlider::valueChange ( )

protectedvirtual

Notify change of value

This function can be reimplemented by derived classes in order to keep track of changes, i.e. repaint the widget. The default implementation emits a valueChanged() signal if tracking is enabled.

Reimplemented from QwtDoubleRange.

Reimplemented in QwtDial, QwtSlider, and QwtWheel.

void QwtAbstractSlider::valueChanged ( double value )

signal

Notify a change of value.

In the default setting (tracking enabled), this signal will be emitted every time the value changes ( see setTracking() ).

Parameters:

value new value

void QwtAbstractSlider::wheelEvent ( QWheelEvent * e )

protectedvirtual

Wheel Event handler

Parameters:

e	Whell event
