RiverWare 7.3 Development / Phil Weinstein / Updated 1-19-2018
| Bug | 7.3 | 7.2.1 | Description |
| 5999 revisited |
Object Viewer: Switching obj tabs: Loss of vertical scroll position and AggObj treeview expanded states. Minor followup for (Object-) Attributes tab treeview open/closed state stability when switching Object Tabs. | ||
| 6066 | Objects added to one workspace view are misplaced in other views | ||
| 6067 | No message when a run is started with the Init button | ||
| 6071 | 1-17 | Expression Slot Evaluation Range fields not resized correctly for different font size. | |
| 6072 | 1-18 | Slot Viewer and Slot Dialogs data table row heights are not adjusted when Font is changed. | |
| unfiled | 1-19 | Prevent AggSeriesSlot columns from opening up in their own Slot Dialogs (e.g. from RDF Output config) | |
| 6068 | in progress | RDF output from MRM is not correctly identifying agg series slots. [Branch: Bug6068a]. | |

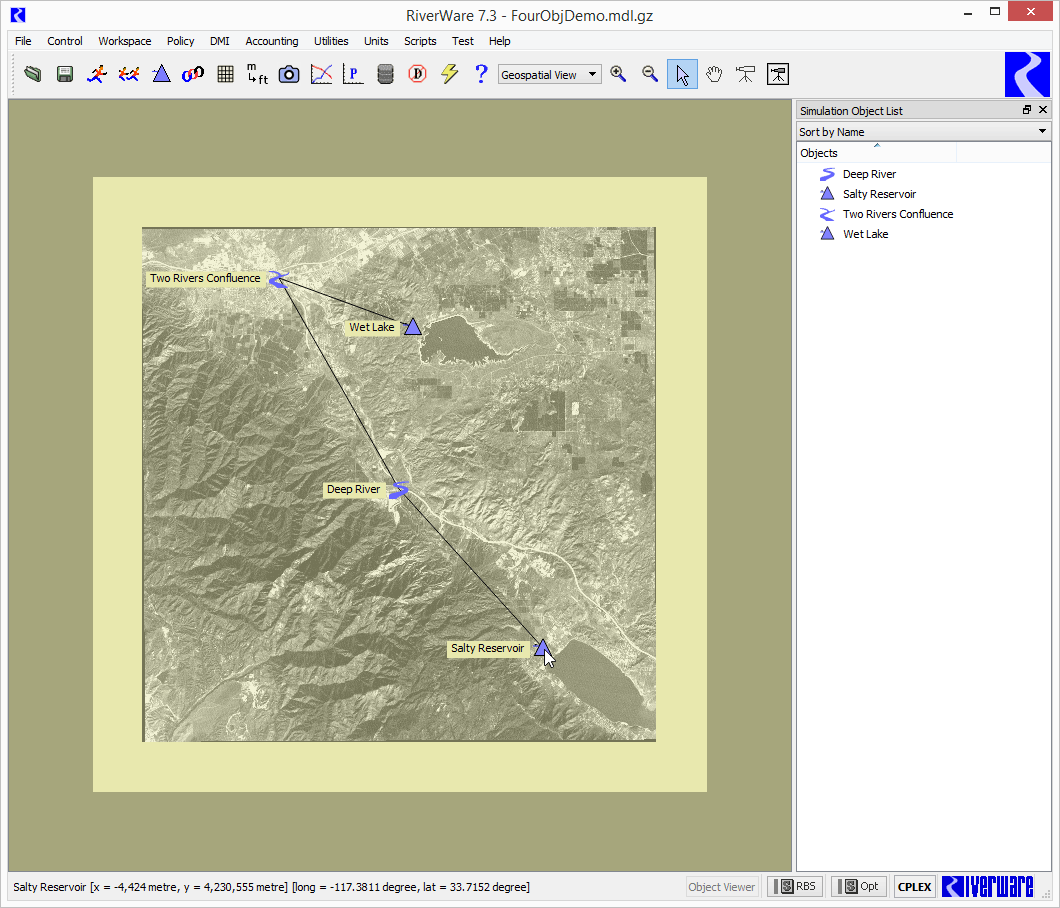

Unsponsored: Workspace Views: Visible Canvas Rectangle
In each of the three RiverWare Workspace Views, the area beyond the configured canvas rectangle (width and height) is now shown 40% darker than the configured background color. Before this enhancement, it was not possible for the user to see (e.g. when zoomed way out) which part of the visible canvas represented valid locations for simulation objects and other workspace items.

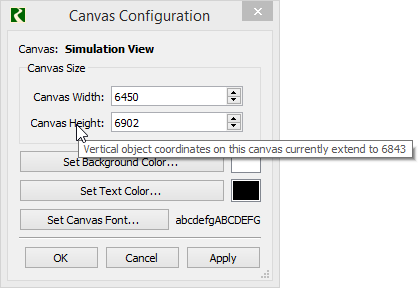

Unsponsored: Canvas Config Dlg (Sim & Acct only): Tooltips to show current object max coord
Two tooltips were added for the Simulation and Accounting Views' "Canvas Configuration" dialog showing the current upper bounds of simulation object coordinates.
BOR ABQ 8: RW Workspace: Middle Button Hand Drag
The RiverWare 7.2 workspace supports a temporary "Pan Mode" by pressing and dragging the middle mouse button (which is often a scroll wheel). When pressing and holding the middle mouse button, the cursor changes to the closed hand cursor, indicating that moving the mouse drags the content of the RiverWare workspace along with the cursor. When releasing the middle mouse button, the cursor reverts to the cursor for the current workspace mouse mode -- for Selection Mode this is the typical arrow pointer cursor.
The new middle-button temporary pan mode is supported in all three Workspace canvases (Simulation, Geospatial, and Accounting) in the "Selection" and "Pan" workspace mouse modes. It is also supported in the new RiverWISE application's workspace viewer panel.
---
