| Subject: | Re: Object Attributes / Requirements and Design document | |
|---|---|---|
| Date: | Sat, 28 Jun 2014 00:03:56 -0600 | |
| From: | Phil Weinstein | |
| To: | David Neumann, Patrick Lynn, Edith Zagona, Neil Wilson |
I've fleshed out the GUI sections of this document, including four mockup screenshots.

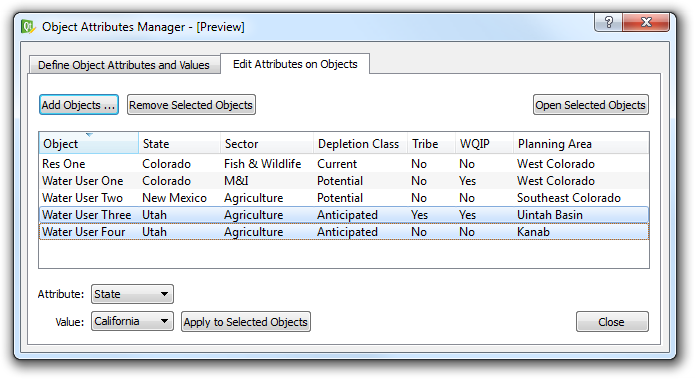

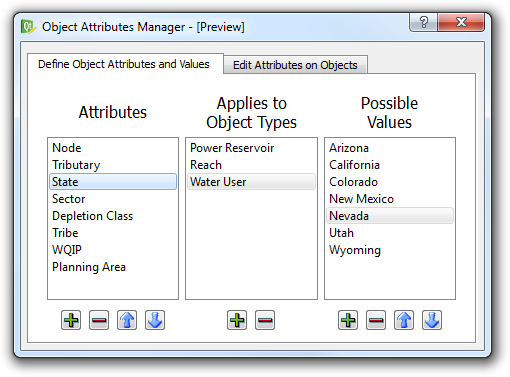

The two Object Attribute Manager Dialog tab mockups are just in Qt4 Designer. The UI file is put aside here. (Also the two images):

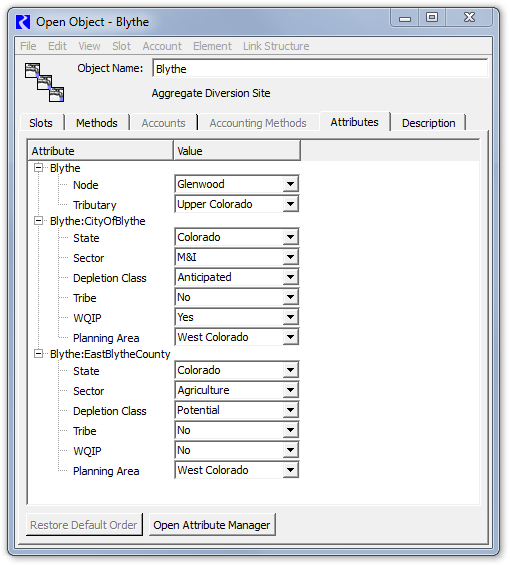

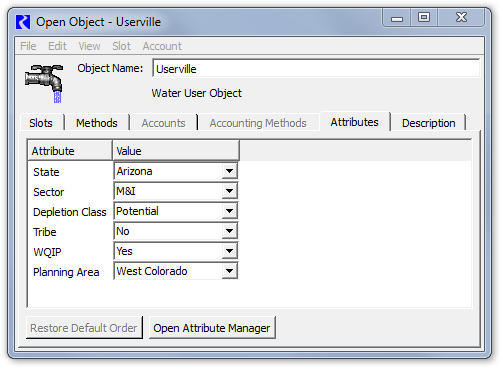

The two mockups of the Open Object Dialog (normal object and aggregate object) are actually jury-rigged code in RiverWare. (Not to be checked in, of course, to the main branch. I will put this code aside in a temporary branch). See these two images:
I also added some language in the "Requirements" section about the attributes and values lists having a significant user-editable order.
(I did not apply my suggestion of referring to comboboxes as "option menus". See my prior e-mail).
- Phil
