RiverWare Qt4 Porting, 2012 -- Lists and Tables

RiverWare Qt4 Porting -- 2012 / RiverWare 6.2 and 6.3
Dialogs containing major widgets to be ported from Q3 to Qt4.
Edit 10-08-2012, Phil

See also: Remaining Header Files have "Q3" Data Members (Oct 2012).
See also: List from October 2011.
Related: Qt (and Qwt) upgrade notes, from Qt 4.6.3 to Qt 4.8.3 (Sep 2012).

Current Porting Work / October 2012:

Completed	Dialog / List
	SCT -- Series Slot Data Table (SctQTable -- a complex Q3Table) -- NOTE: Some work started 3-2012.
	Open Object Dialog -- (DragDropSimListView -- Q3ListView -- 3 instances)

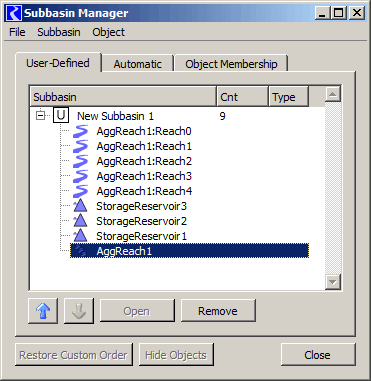

10-04-2012	Subbasin Manager Dialog -- (SubbasinMgrListView -- Q3ListView) / Gnats 5229 (image)
10-05-2012	Model Run Analysis Dialog / Rule Effects Panel (RuleEffectsListView -- Q3ListView)
10-08-2012	Run Analysis Detail Panel -- (DispatchInfoListView -- Q3ListView -- two instances)
Added	Edit RPL Function Arguments -- (RplArgEditDlg -- Q3ListView)

	DMI: Dataset Manager -- Dataset ListView (Q3ListView)
	DMI: Database DMI Editor -- Slots and Datasets ListViews (complex Q3ListViews)
	DMI: Database DMI Import/Export Dialog -- Database DMI Object List (Q3ListView)
	DMI: HDB Meta Data Dialog -- (Q3ListView)
	DMI: Name Map Manager Dialog -- (Q3ListView)
	DMI: Name Map Dialog -- (Q3ListView)

Completed Porting Work / September 2012:

Completed	Dialog / List
09-04-2012	Object Account Summary Configuration "Save" dialog -- (Q3ListBox)
09-04-2012	Edit Row/Column Labels Dialog (for TableSlots and AggSeriesSlots) -- (simple Q3Table)
09-05-2012	RPL Block Selector -- (Q3ListView) ... see notes
09-06-2012	RPL Editor (blocks, functions, etc) -- (RplFrame -- Q3ScrollView) ... see notes / images
09-10-2012	Diagnostics Config Dialog / (1) "Root" lists [notes] (2) Category tree view, (3) Timestep button groups [notes]
09-11-2012	Open Statistical Table Slot Dialog -- (Q3Table) ... notes
09-13-2012	Display Group Editor -- (DisplayGroupListView -- Q3ListView) ... notes
09-25-2012	GUS ("Grand Unified Selector") -- (GusListView -- Q3ListView)
09-28-2012	Sim Object Palette -- (SimObjPaletteDlg -- Q3StoredDrag)

Prior Completed Porting:

Completed	Dialog / List
Dec 2011	Object Account Summary Dlg: Account Order List -- (Q3ListView)
Feb 2012	Object Account Summary Dlg: Timestep Selection List -- (Q3ListView)
Mar 2012	Diagnostics Output Window (DiagOutputListView -- Q3ListView -- two synchronized instances) ... enhanced (8-2012)
Jul 2012	Scenario Manager Dialog -- (Q3ListView) ... notes ... see also UX enhancemement proposal

---
