RdfAnnualizer Plugin Help Information


Table of Contents


Overview

The RdfAnnualizer plugin will use a RiverWare Data Format (RDF) file with a timestep of less than a year and will aggregate its data to generate an RDF file with an annual timestep. Methods for aggregating data for the slots in the RDF file are specified via a method control file. The user also specifies the end month for the aggregated year, so calendar years or water years can be generated, for example.

Source RDF File

RDF files are generated from RiverWare and contain data for slots specified by the user. Non-series slots can be written to RDF files, but only data for series slots will be processed by the RdfAnnualizer tool. The exact format of an RDF file is described in the Output and Plotting section of RiverWare Online Help. An RDF file for results from a single run in RiverWare can be created from the Output Manager via a RiverWare Data File device. Slot data for a multiple run in RiverWare can be output to an RDF file by configurations in the Output tab of the MRM Configuration dialog.

The source RDF file should contain series data with a timestep of less than a year.Currently in RiverWare this would include timesteps of  1 hour, 6 hour, 12 hour, daily, weekly, and monthly. If a yearly timestep file is specified as input to the RdfAnnualizer, an error message will be returned that the run is already in an annual timestep.

Method Control File

The method control file specifies the slots to be processed and the annualization method associated with the slots. The file is a text file and the syntax is for each line to contain an entry of the form:
Object.Slot: Method
where Object can be:
where Slot can be:
and where Method can be any of the following:
The behavior of the non-Nan methods is to report NaN for the summary value if any of the input values for the year are NaN. The Nan suffix on a method means that NaN input values are ignored in calculating the summary value.

If the same slot is identified more than once in the method control file through specific declarations or wildcards, the method is set at the first identification and not changed thereafter.

Example Method Control File

An example method control file might contain the following entries:

*.Outflow: Average
*.Pool Elevation: End
Big Reservoir.Evaporation: SumNan
DataObj.*: EndNan

Outflow for all objects in the file will be averaged over the year and if any outflows are NaN, the result for the year will be NaN. Pool Elevation for all abjects in the file will be the last value for the year and if any values over the year are NaN, the result will be NaN. For the object named Big Reservoir, its evaporation slot will be summed over the year, and if any values are NaN, they will be skipped and the remaining values will be used in the sum. For all objects in the file that are data objects, all of their slots will be assigned the last value of the year whether there are any NaNs or not in the data over the year.

End Year Month

The RdfAnnualizer plugin will take a month specification that becomes the end of year for the annualization calculations that generate the result RDF file. The default is December for annualizing to calendar years, but any month can be specified, such as September for water years. Another example would be if you want an RDF file with storage for reservoirs at the end of March, you could annualize with March as the end month and use the End method to get the last value for the year.

Note that if the timesteps in the source RDF file generate partial years at the beginning or end of the time range when annualized into the defined year, the partial years are dropped when the result RDF file is written. The result annual RDF file only contains data for full annualized years.

Result Annual RDF File

The result RDF file contains all of the same descriptive fields as the original source RDF file, such as name, owner, description, etc., and will contain the same number of runs. Note that only slots from the original file that have a method defined in the method control file will be annualized, so the output RDF file could have  fewer slots than the input file (also any non-series slots in the source RDF file will not be annualized). The time_step_unit field is written as year, and the end times for the specific annualized years are listed as the new timesteps for the file.

The same slot header information is listed in the result file for annualized  slots, except a method field is added to show the specific method for how that slot's data was annualized. Also, if the method was Sum or SumNan, the units field for the slot has the phrase "summed over the year" added to it (such as "acre-ft/month summed over the year"). Otherwise, the result annual RDF file looks exactly like an RDF file that was output from a RiverWare model with a yearly timestep.

User Interface

When the RdfAnnualizer plugin is activated, the following user interface is presented (note that the source RDF file and the output annual RDF file are configured in the program calling the plugin, so are not part of this interface):

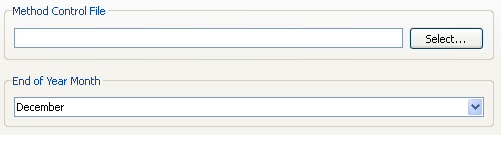

RdfAnnualizer Plugin Interface

The Method Control File can be indicated by either using the associated "Select..." button to open a file chooser dialog, or by typing in the path and file name into the file's text field.  An environment variable of the form $NAME, for example, can be typed in and the NAME environment variable defined on the system would then be substituted into the Method Control File path when the program is run.

The End of Year Month is a combo box where the month defining the end of the annualized year can be selected by the user.
