RiverWare 6.1: Unit Schemes / 8-11-2011
To Do: Old Style DMI

(1) Design and implement identification of a stable default reference scheme for Batch Mode and DMI

A particular Unit Scheme in the RiverWare model will be identified by the user for units used in Batch Mode (e.g. for batch mode Output Device operation) and for default units used in DMIs. This applies to:

• Old-style DMI's when certain control file records don't provide units, and
• Database DMI operations when the selected Units Sources (the external database and/or the Dataset units map) don't provide the units necessary for a particular slot or unit type. (This seems to be relevant for only Excel Database DMIs).

(2) Mostly in *Slot.DMI.cpp files ...

for 2b ... DMI diagnostic categories:

1. In places where the Scale and Units are retrieved from the Slot or Slot Column, instead retrieve units from the "Batch Mode and DMI Default Units Source" (with respect to the particular Slot or Slot Column).

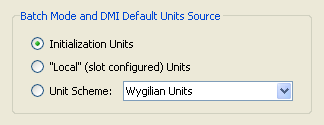

2. When making use of the "Batch Mode and DMI Default Units Source" ...
   1. count that occurrence, and report the total count at the conclusion of the DMI operation (if non-zero).

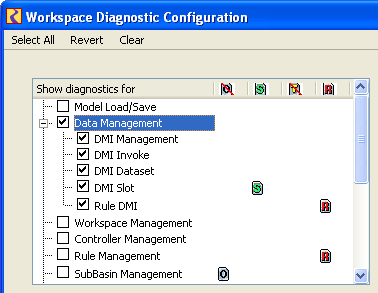

   2. based on one of the DMI Diagnostic Categories being enabled (see image) ... conditionally report the use of this default unit source for the particular Slot or Slot Column. [Bill recommends "DMI Invoke"].

--- (end) ---
