RiverWare 6.1 -- SCT: Set Aggregation Summary Functions
Phil Weinstein, CADSWES, edit 5-11-2011 / See revisions

Status:  A functionally complete implementation of the "Set SCT Aggregation Summary Functions" dialog is checked in to the RiverWare 6.1 development build. This includes persistence in the SCT Config for subsequent automatic application to newly added Slots.

Analysis and Notes:

• Technical Note: RiverWare Default value defined in source code (as of 5-11-2011).
• Original Analysis (not similar to chosen design direction).
• Development Notes
• Data Model: Header File / Implementation
• Dialog: Header File / Implementation / UI File

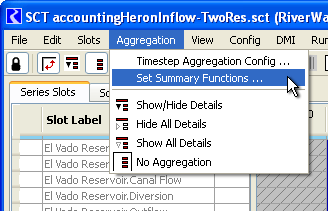

Shown from the SCT "Aggregation" Menu (5-11-2011) ...

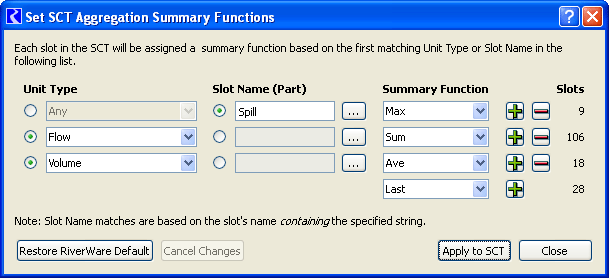

Development Screenshot Three (5-9-2011):

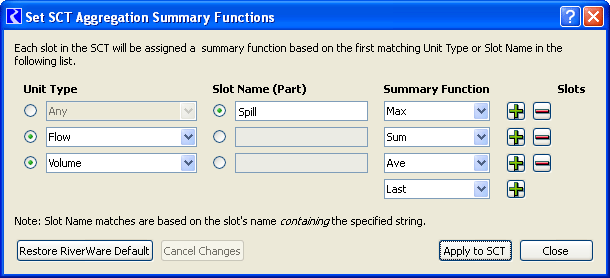

Development Screenshot Two (5-6-2011):

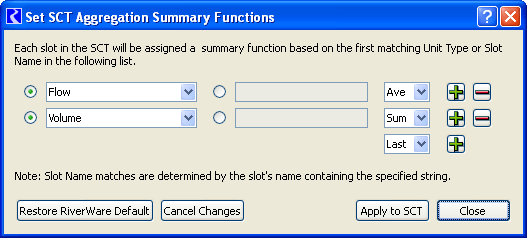

Development Screenshot One (5-5-2011):

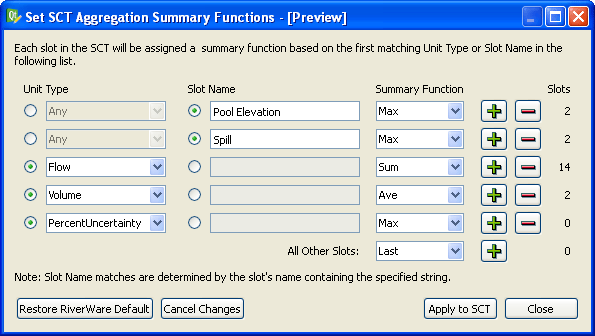

Mockup: Bake 1

Mockup: Bake 0
