Mass Balance Summaries in RiverWare 6.2 -- Dec 2011 / Jan 2012
Project index / 1-18-2012 Development Screenshots

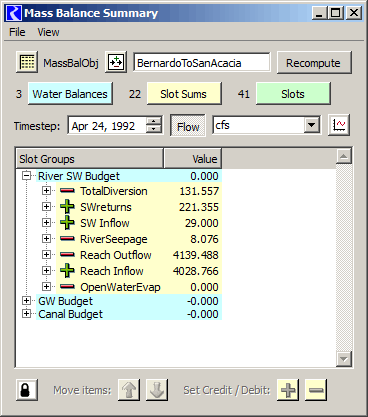

Computed Slot Generation. The following images show the initial effect (currently developed functionality) of clicking the "Recompute" button in the Mass Balance Summary "open slot" dialog. This creates an AggSeriesSlot on the data object for each Water Balance -- with a SeriesSlot column for each of the Slot Sums under the respective Water Balances. Any previously created AggSeriesSlots and slot columns generated from a prior "Recompute" operation which are no longer relevant to the current configuration are deleted. Previously generated slots which are still relevant remain intact: they are not deleted and reallocated. This work does not include the actual computation of generated slot values -- that's next.
|
NOTE: The numeric values shown in this image are from the legacy URGWOM Rpl Expression Slots. References to those slots are being retained only for development and testing. |
|
NOTE: The generated slots which appear in the Open Object Dialog below are shown only for development. We are planning on having them hidden in the finished feature (or perhaps conditionally shown, but not by default).
|

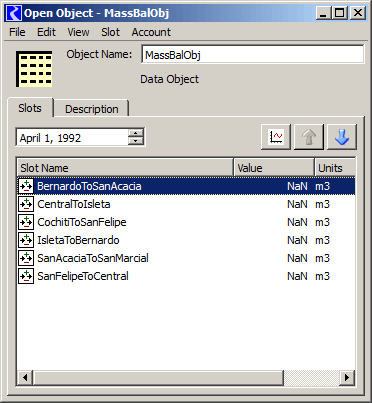

Before clicking "Recompute" (above) the first time ...
|

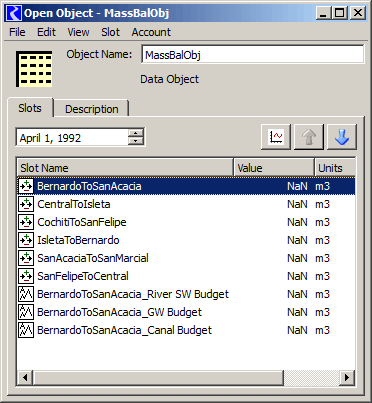

After clicking "Recompute" ...
|

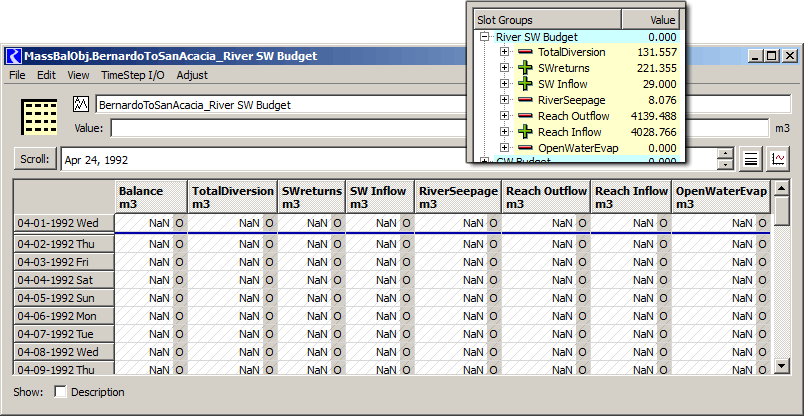

The AggSeries Slot shown below is generated for the "River SW Budget" Water Balance on the "BernardoToSanAcacia" mass balance summary slot. The first column of the AggSeries is the sum for the overall Water Balance. Subsequent columns correspond to the "child" Slot Sums.
---
