RiverWare 6.2: Gridded Object Data Editor
CADSWES / Phil Weinstein / 10-21-2011

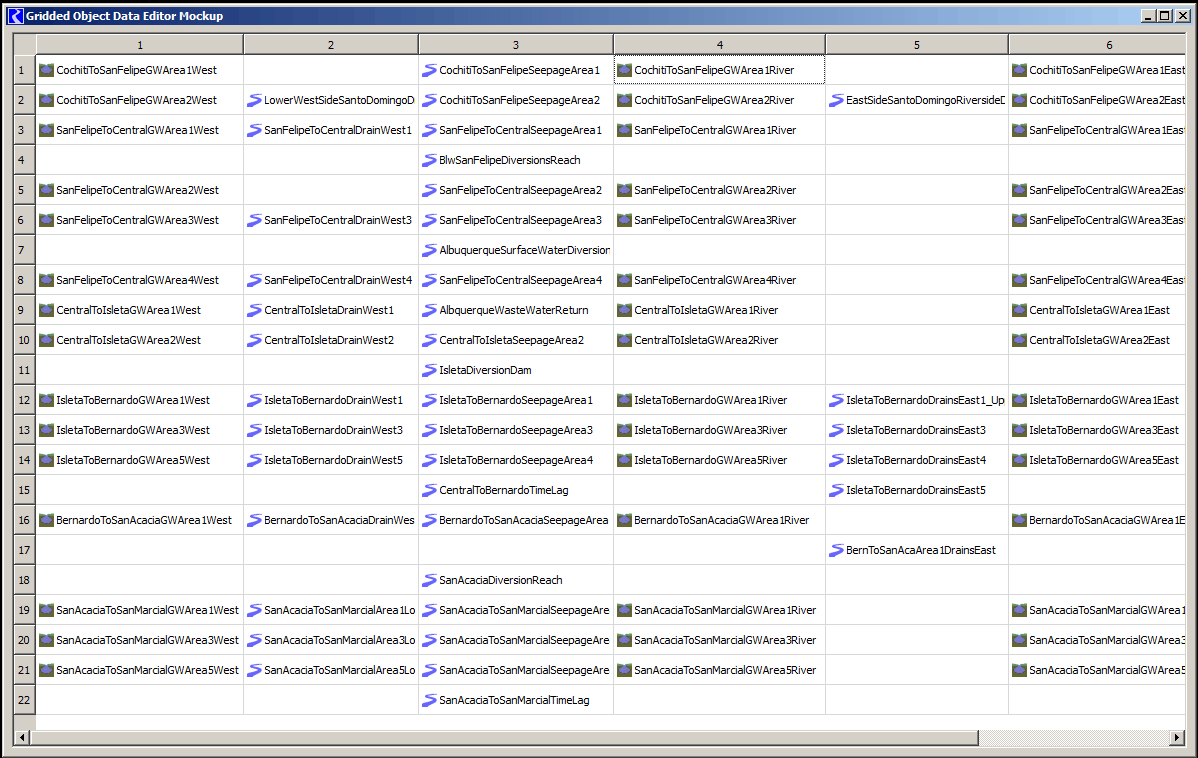

The table below is a dynamically generated mockup presented for the purpose of exploring (and discussing) the realistic "scope" of data needed to be supported by this feature. Currently, only object icons and labels are shown in each cell. The actual feature will support conditional display of a small set (typically 3 to 10) of scalar and table slots in each cell. The value of scalar slots and single cell table slots would be directly editable; other table slots could be opened.

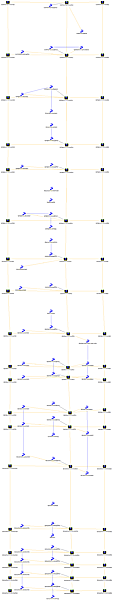

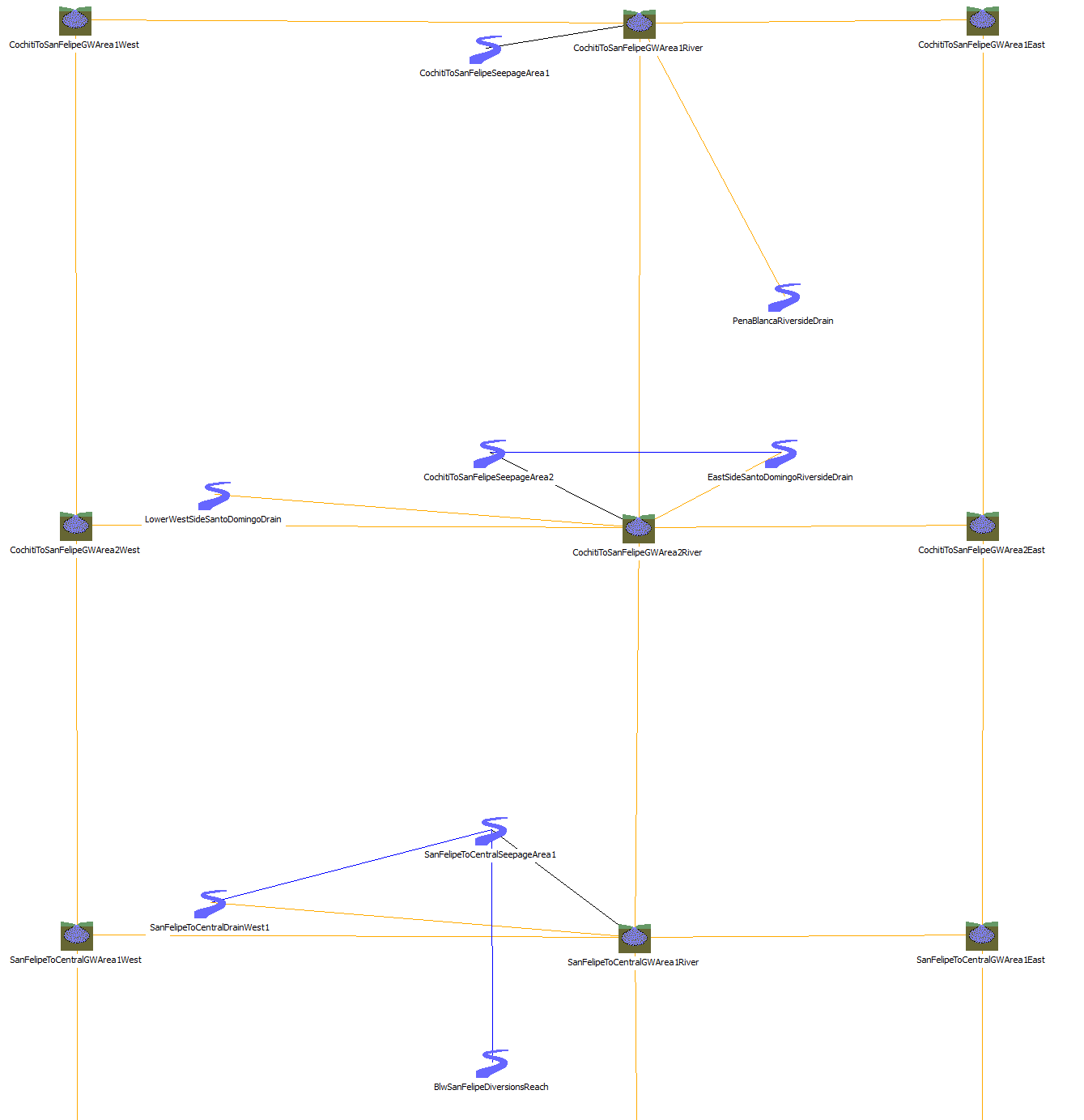

This data was generated from an URGWOM model provided by David (MRGV_2011_calibration.rw). All objects other than ground water objects and reaches were deleted from the model before this mockup was generated. (The dynamic algorithm to generate the mockup does not preserve all objects -- this is being used only to provide a representative mocked up example).

Click on image to see full size:
