RiverWare SeriesSlot
GUI: Timestep Label Prefix
Phil Weinstein, CADSWES, 5-21-2007, RiverWare 4.9
The Open SeriesSlot dialog for SeriesSlots (and subclasses) on Data Objects can now display user-supplied text before each timestep row DateTime label. This is a special feature introduced for presentation of annual summary data in a Yearly-timestep series slot when the Water Year is not aligned with the calendar year.
The Timestep Label Prefix text is edited from the Configure Timeseries dialog box available from the Open SeriesSlot dialog: "View >> Time Series Range..." menu operation.

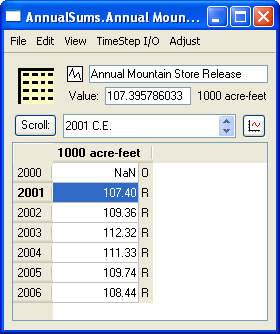

| Annual SeriesSlot without a Timestep Label Prefix defined ...
|

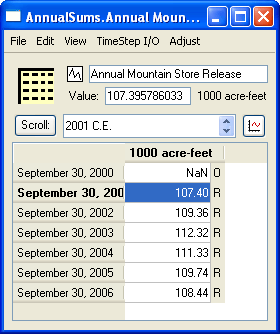

Annual SeriesSlot with a Timestep Label Prefix of "September 30," ...
|
|

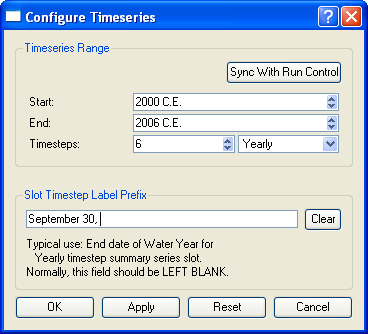

Configure Timeseries dialog box defining a Timestep Label of "September 30," ...
|
NOTE: The width of the row label area can only grow, due to a limitation of QTable. That area will be correctly resized the next time the Open SeriesSlot dialog is shown. |
