CADSWES / Phil Weinstein / 2-16-2012
The Mass Balance Summary is a user-defined hierarchy of series slot collections used to check mass balance across many objects in a RiverWare model. Any data object can optionally have a Mass Balance Summary definition. Series slots representing sums of the sets of series slots are maintained on the data object, and can be referred to from Rpl expression slots defined by the user for any summation calculations not provided by the Mass Balance Summary, e.g. annualization of sums.
Mass Balance Summary Data Object (Exported RiverWare 6.2 Object) / 02-16-2012
"Version 1" Feature Docment / 02-10-2012, Revised 02-13-2012:
Latest Development:
Design Revisions (1-06-2012) -- Mass Balance Summary deployment as a "slot", with multiple such slots supported on a single SimObj (data object) -- in progress.

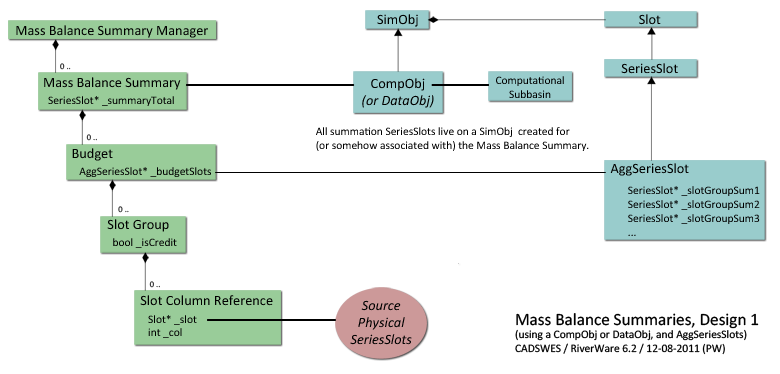

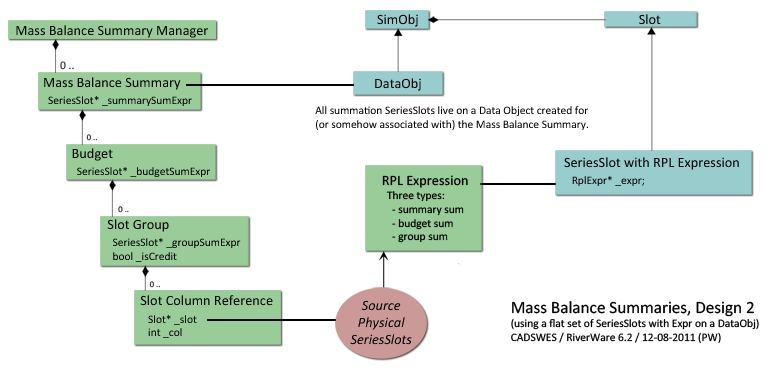

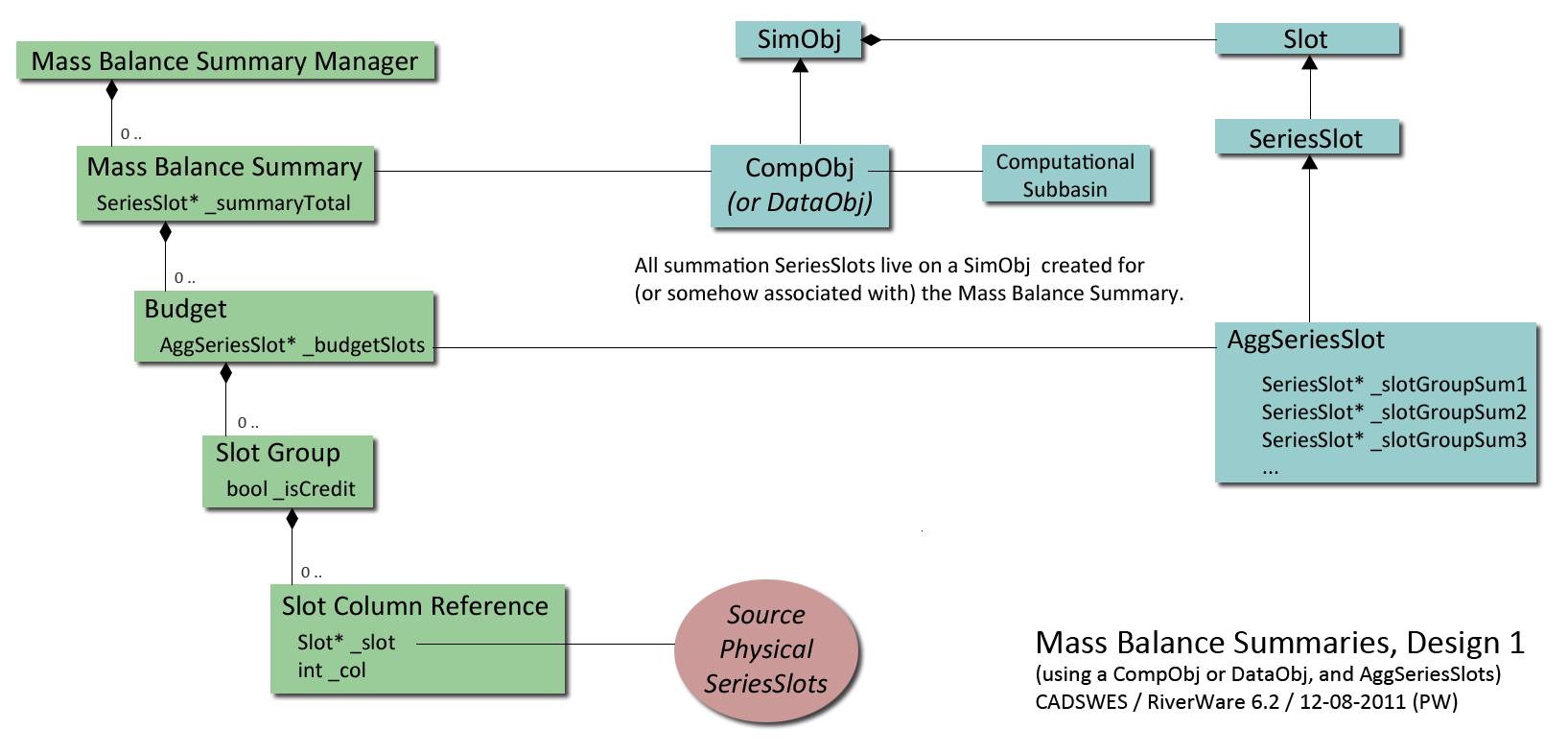

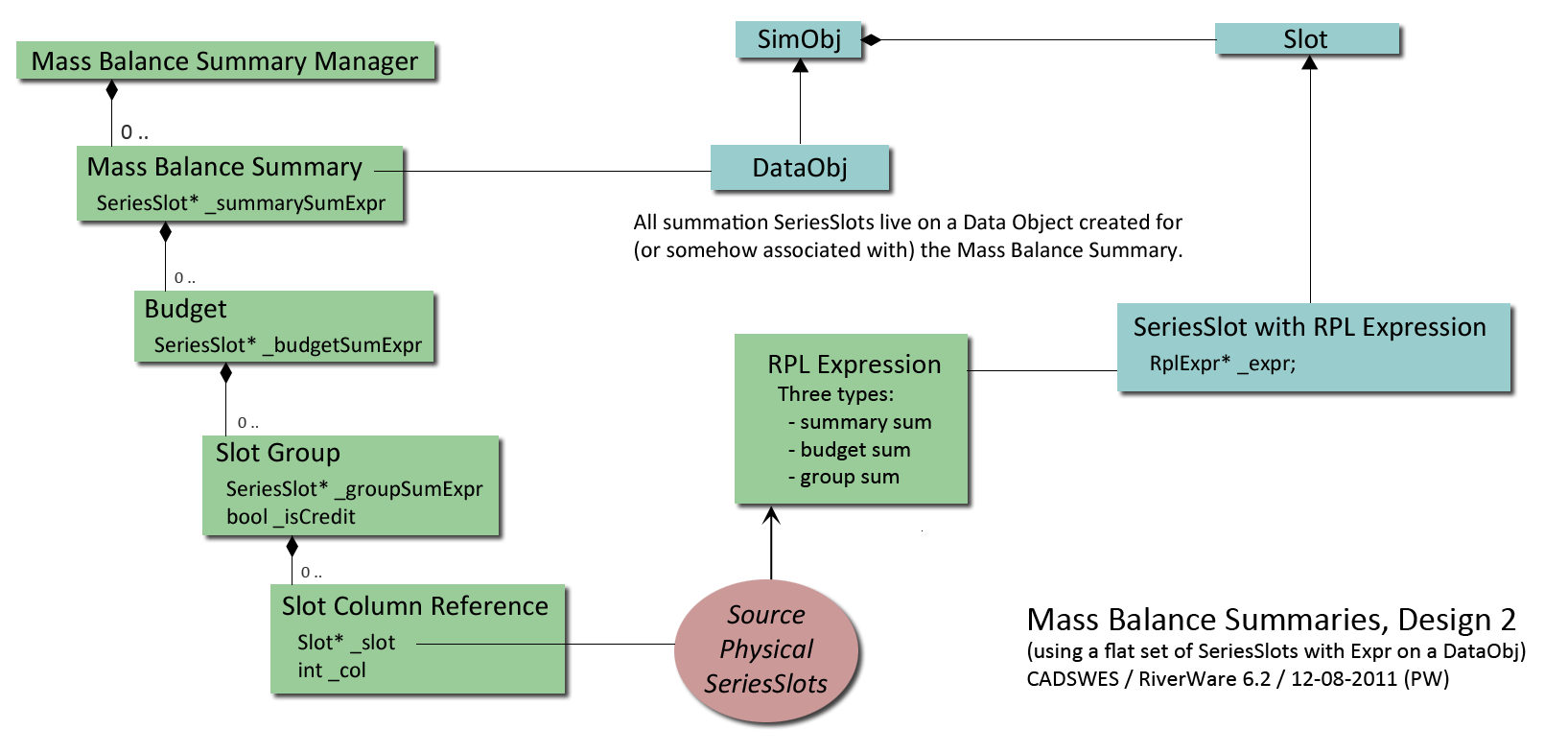

Design Document / 12-30-2011:
Brief preliminary requirements document:
Old analysis and design documents:
Serializations of Reference Model Meta-Data -- FOUR level configurations:
Serializations of Reference Model Meta-Data -- THREE level configurations:
Production Source Files:
Not Currently Used (Slot Sum Configuration Dialog):
Analysis and Meta-Data Generation Source Files:
---
