RiverWare 6.1: New Accounting Diagnostics Categories
10-20-2011 / CADSWES / Phil Weinstein

Enhancements for Gnats 5110:
   "Can't turn on print statements for object level accounting methods RPL set"

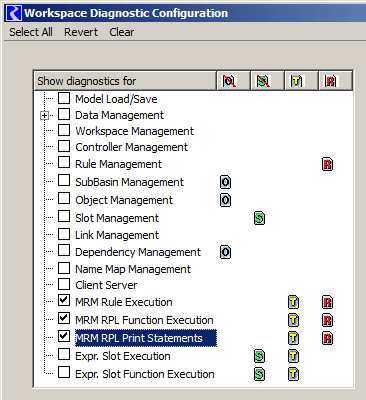

Accounting diagnostic categories were added to support RPL-implemented User Defined Account Methods, similar to those for MRM Rules in the Workspace Diagnostic Configuration dialog.

In the "Post-Simulation Accounting Diagnostic Configuration" dialog, the Account Method "User Method Execution" category was renamed to "RPL Method Execution", and two additional categories were added: "RPL Function Execution" and "RPL Print Statements".

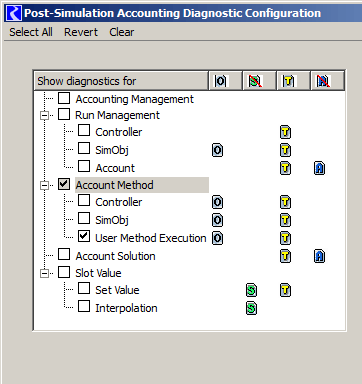

Old Account Method Categories (RiverWare 6.0)

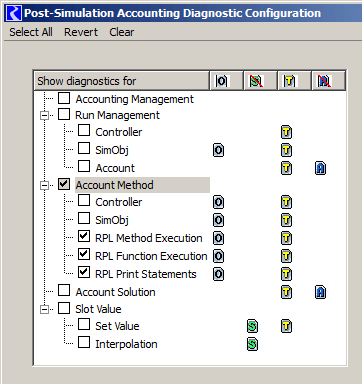

New Account Method Categories (RiverWare 6.1)		See full panels, below.

NOTE: Because of the name change of the "User Method Execution" category, when reloading a model which had the "User Method Execution" category turned on, that setting will be lost. When this happens, the following diagnostic will be reported:

• WARNING: "Diagnostic group ("User Method Execution") does not exist (probably due to an internal name change). Please check the diagnostics settings using the "Diagnostic Info" dialogue."
• (This warning occurs in the RiverWare accountingHeronInflow regression test).


NOTE: A change to the DiagGroups run-time text file was made to effect this change. This run-time file needs to be updated in RiverWare 6.1 installations.

Technical Notes -- Internal Diagnostic Configuration Changes:

--------------------
Sim/DiagCategory.hpp
--------------------

  const DiagCategoryId  ACCTOBJID_UDAM_EXEC = 0x19000004;  <<< EXISTING
  const DiagCategoryId  ACCTOBJID_UDAM_FUNC = 0x19000008;  <<< NEW
  const DiagCategoryId  ACCTOBJID_UDAM_PRIN = 0x19000010;  <<< NEW

------------------------
Sim/DiagCategoryDesc.hpp
------------------------

      { ACCTOBJID_UDAM_EXEC, "Acct SimObj Udam",      CONTEXT_TYPE_TIMESTEP }
 NEW: { ACCTOBJID_UDAM_FUNC, "Acct SimObj UdamFunc",  CONTEXT_TYPE_TIMESTEP }
 NEW: { ACCTOBJID_UDAM_PRIN, "Acct SimObj UdamPrint", CONTEXT_TYPE_TIMESTEP }

--------------
Sim/DiagGroups
--------------

 OLD:
   Controller {Post-Simulation Accounting} {Account Method} {User Method Execution} = {Acct SimObj Udam}

 NEW:
   Controller {Post-Simulation Accounting} {Account Method} {RPL Method Execution} = {Acct SimObj Udam}
   Controller {Post-Simulation Accounting} {Account Method} {RPL Function Execution} = {Acct SimObj UdamFunc}
   Controller {Post-Simulation Accounting} {Account Method} {RPL Print Statements} = {Acct SimObj UdamPrint}

---
